Qingdao Wish Auto Parts Co., Ltd. is one of the leading manufacturers and suppliers of scalloped rotors in China, featured by quality products and good price. If you're going to buy the newest scalloped rotors made in China, welcome to get pricelist from our factory. Customized orders are welcome.
Specification
|
Product Overview |
|
|
Products Name |

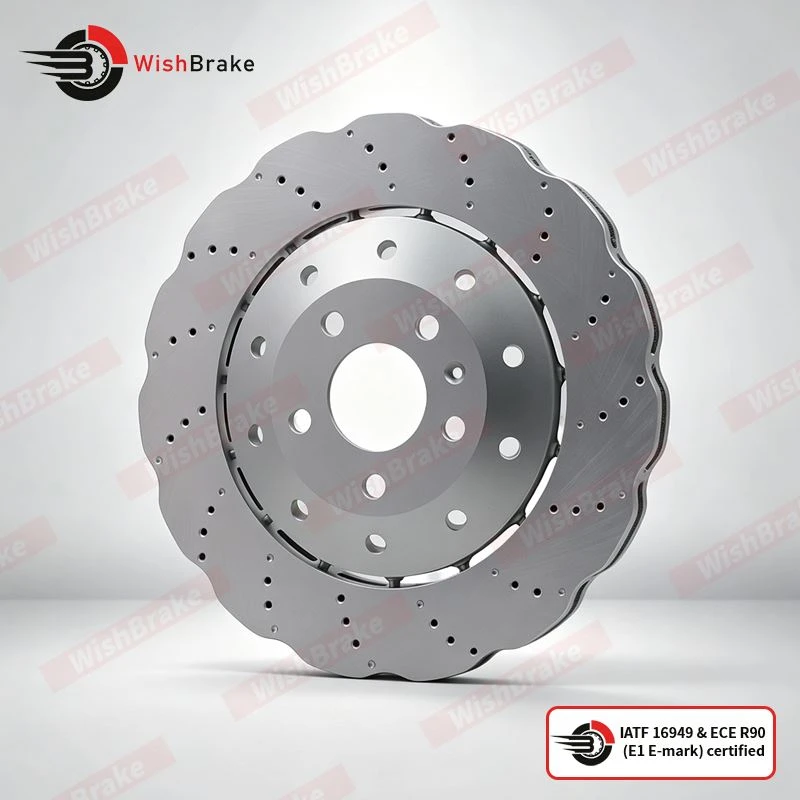

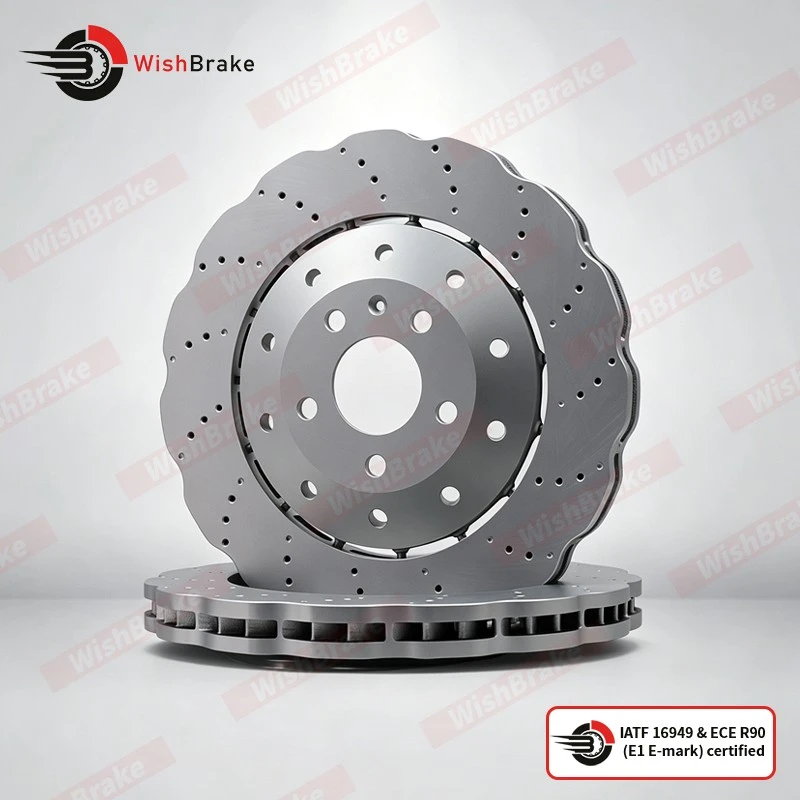

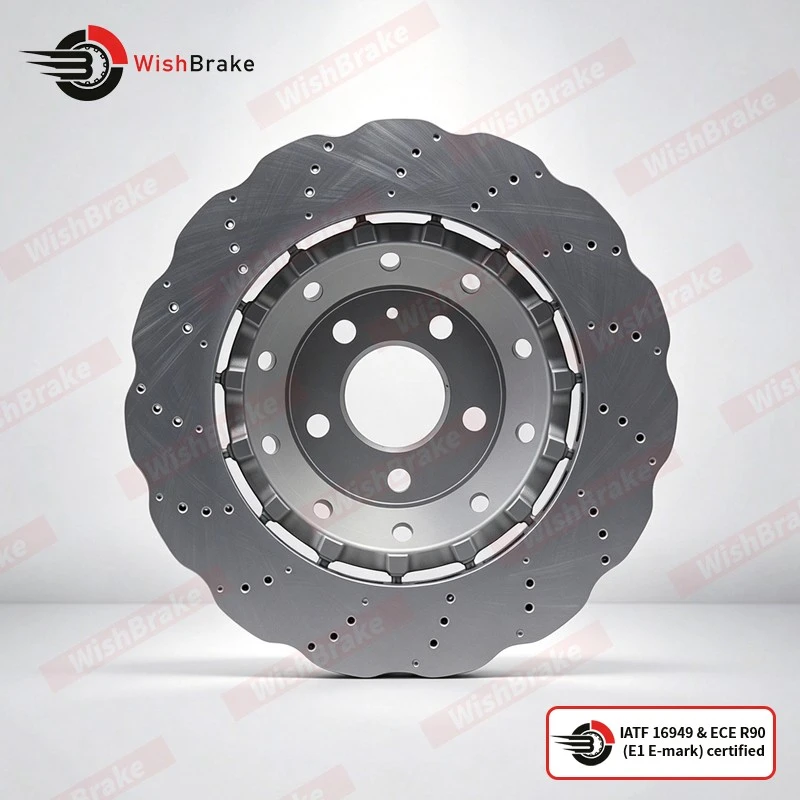

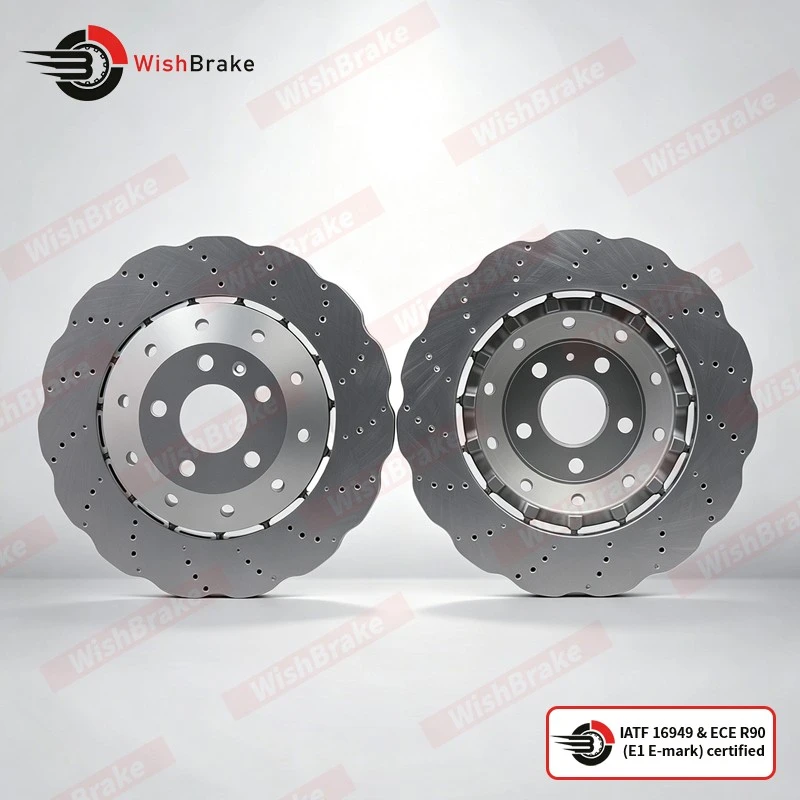

Front 2-Piece Tru-Float Scalloped Brake Rotors - Pair (345x30) |
|
Product Name |
Front 2-Piece Tru-Float Scalloped Brake Rotors - Pair |
|
Product Code |
8K0615301B/ 8K0615301E/ 8K0615301K/ 8K0615301M/ 8K0615301Q/ 8K0698301M/ 95B615301B/ 95B615301M |
|
OE Number Example |
8k0615301m |
|
Brand |
WISHBRAKE |
|
Disc Type |
Front Axle, Vented |
|
Material |
G3000/ G3500/ GG15HC/ GG20HC |
|
Technical Specifications |
|
|
Outer Diameter |
345mm |
|
Disc Thickness |
30mm |
|
Minimum Thickness |
28mm |
|
Overall Height |
52mm |
|
Center Bore Diameter |
68mm |
|
Mounting Holes |
5 |
|
PCD / Bolt Pattern |
112mm |
|
Disc Type |
Front Axle, Vented |
|
Material |
G3000/ G3500/ GG15HC/ GG20HC |
|
Weight |
10.8kg |
|
Vehicle Compatibility |
|
|
Make |
Audi |
|
Model |
Q5 (8RB), S5 Coupe (8T3), S5 Cabriolet (8F7), S5 Sportback (8TA), A4 Sedan (8K2), A4 Avant (8K5), A5 Coupe, A5 Cabriolet (8F7), A5 Sportback (8TA), Q5 |
|
Generation |
8K2, 8K5, 8F7, 8TA |
|
Year |
2007-2019 |
|
Engine |
New |
|
Commercial Information |
|
|
MOQ |
2 Pcs |
|
Sample Availability |
Yes |
|
Packaging |
OEM Packaging |
|
Delivery Time |
7-15 Days |
|
Warranty |
80000kms |
|
OEM/ ODM |
Yes, Support |

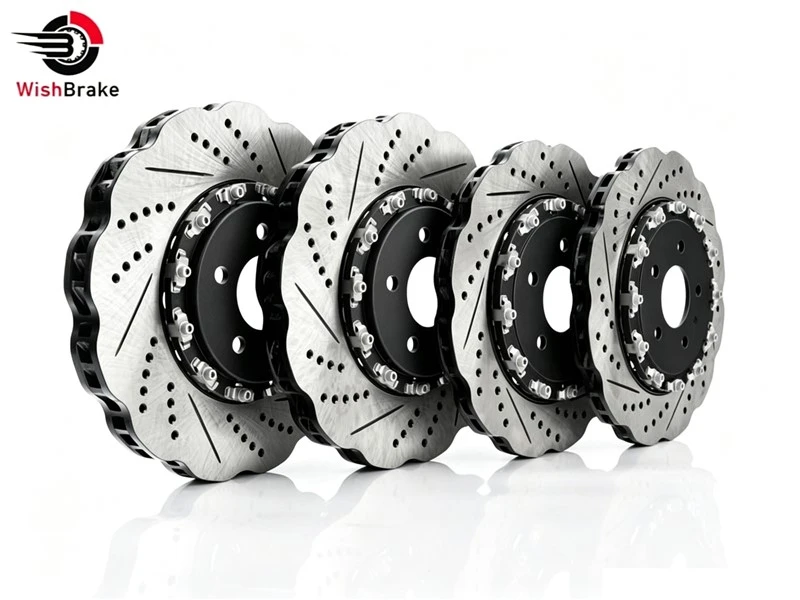

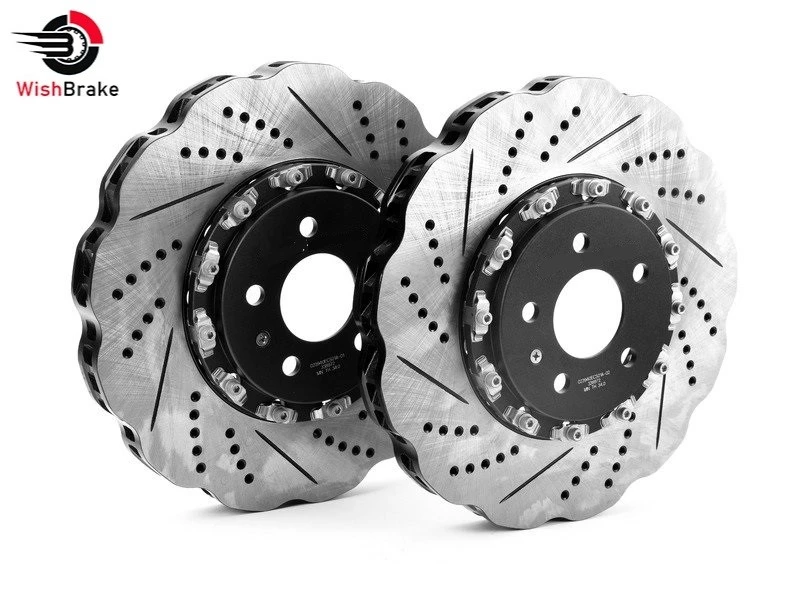

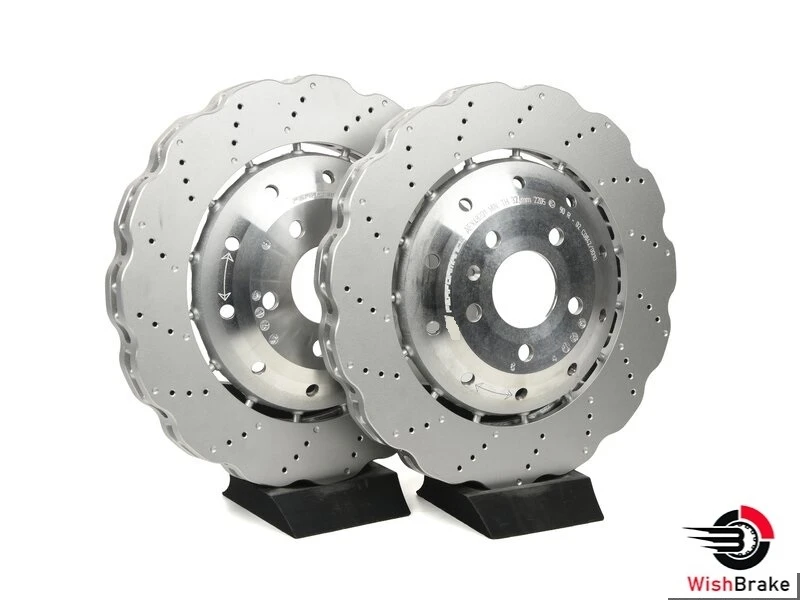

Far from a full continuous circular outer edge perimeter, WishBrake scalloped brake discs incorporate accurately machined alternating radius shaped indentation on the outer edge. This outer edge geometry provides three main functional advantages which surface slotting / drilling does not offer: pinpoint focused reduction of rotating mass at the maximum diameter of the brake rotor, enhanced boundary layer airflow and greater heat dissipation, and intuitive sweeping clearance for brake dust, moisture and small abrasive pieces at the disc periphery. Most enthusiast HP buyers will combine scalloped outer profile with center venting, cross drill or slot pattern on the friction face for conbined performance benefit.
Product feature and application
OE Bolt-on Compatibility: WishBrake does not change mounting dimensions when adding scalloped profile. All critical fitment dimensions follow source OE drawing for compatible vehicle platforms.

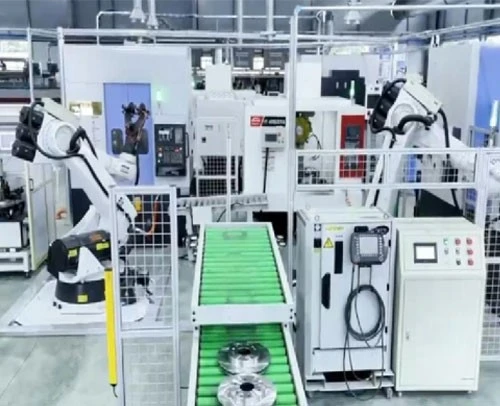

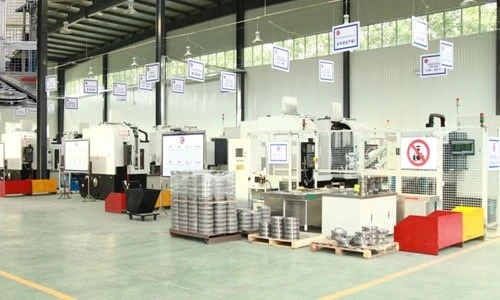

Production details
1. Two piece assembly if floating bimetallic variant

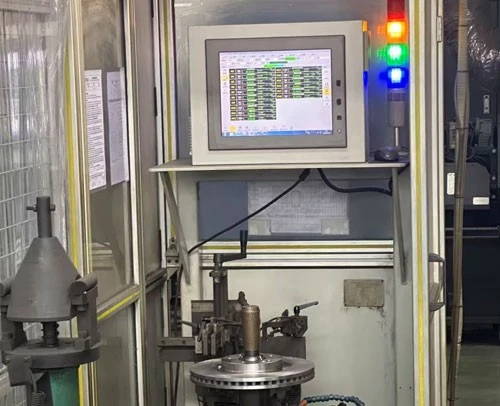

2. Lateral runout check → dynamic balance → thickness variation audit
3. Deburr, clean, optional Geomet / zinc coating
Product qualification
• Bench thermal cycle validation for two piece floating scalloped assemblies
• We support third party factory audit, sample inspection, and can provide PPAP level documentation for larger private label projects
• Trade terms: EXW / FOB Qingdao / CIF / DAP commonly supported. Sea, air and courier sample options.

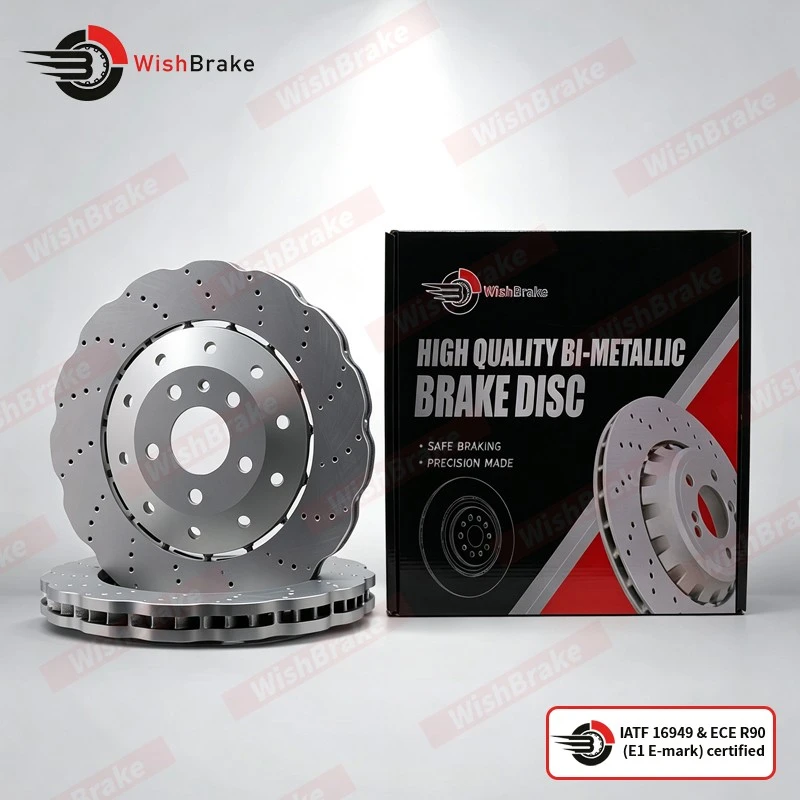

• Packaging: Individual anti-rust wrap, inner box, outer export carton. Custom printed carton for private label.
FAQ
Q: Can you make my existing OE disc into scalloped profile?
A: Generally we recommend new purpose manufactured WishBrake blanks, not post-machining customer supplied rotors, because scallop removal changes stress state and balance. We program profiles from raw blank stage.
• WishBrake expanded the scalloped brake disc program under Brake Discs By Type taxonomy this quarter, adding pre-mapped OE fitments for latest generation performance EV and modern supercar platforms.
