Qingdao Wish Auto Parts Co., Ltd. is one of the leading manufacturers and suppliers of scalloped brake discs in China, featured by quality products and good price. If you're going to buy the newest scalloped brake discs made in China, welcome to get pricelist from our factory. Customized orders are welcome.
Specification
|
Product Overview |
|
|
Products Name |

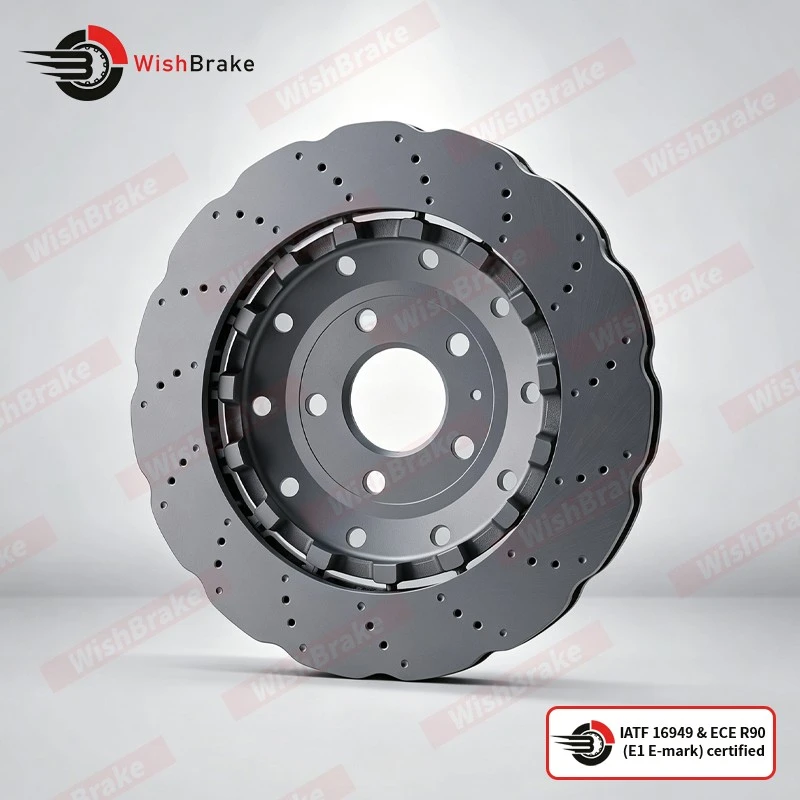

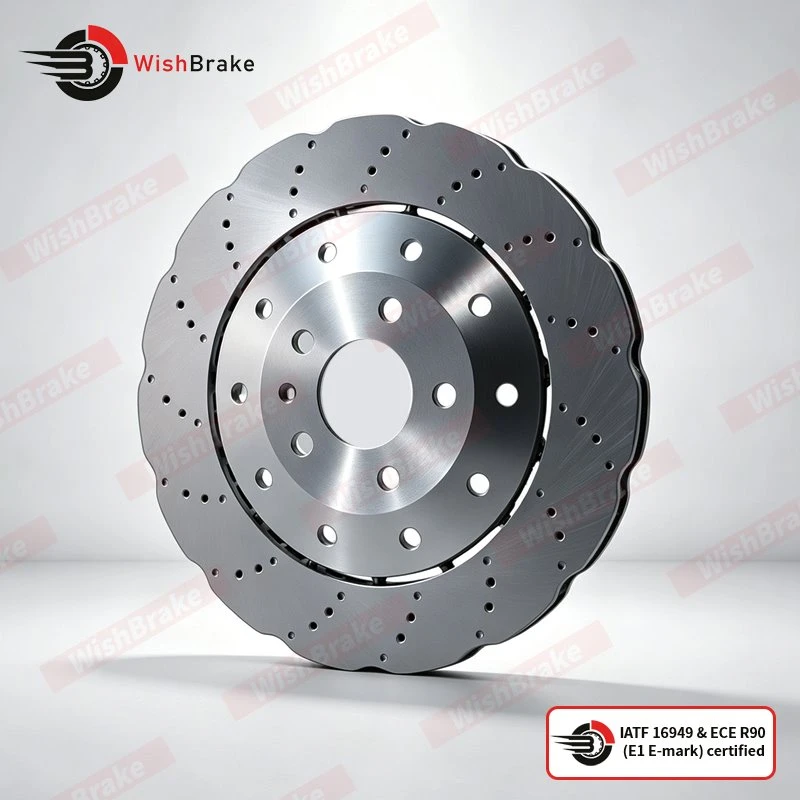

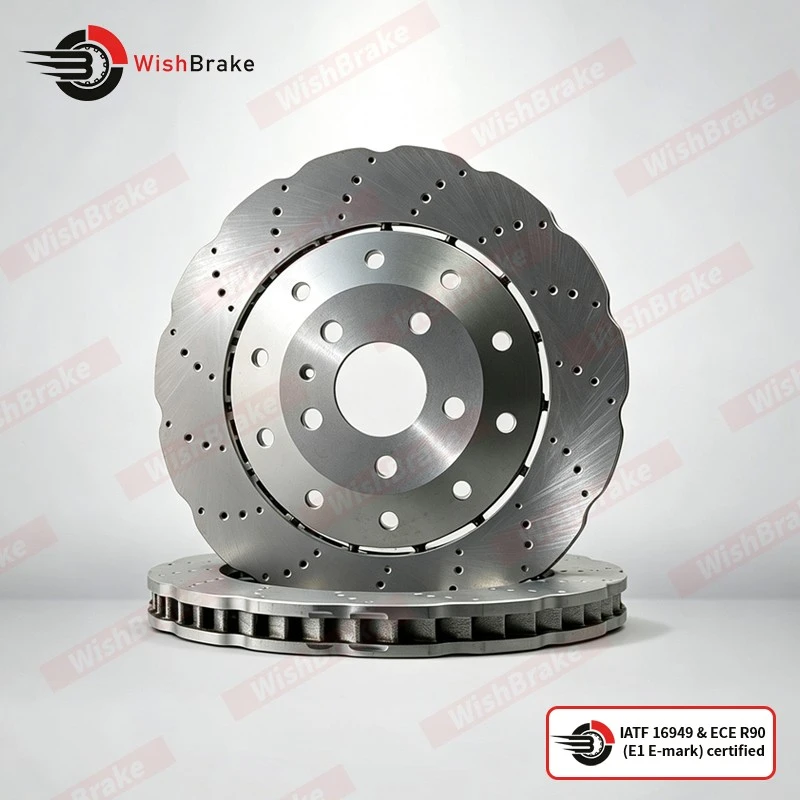

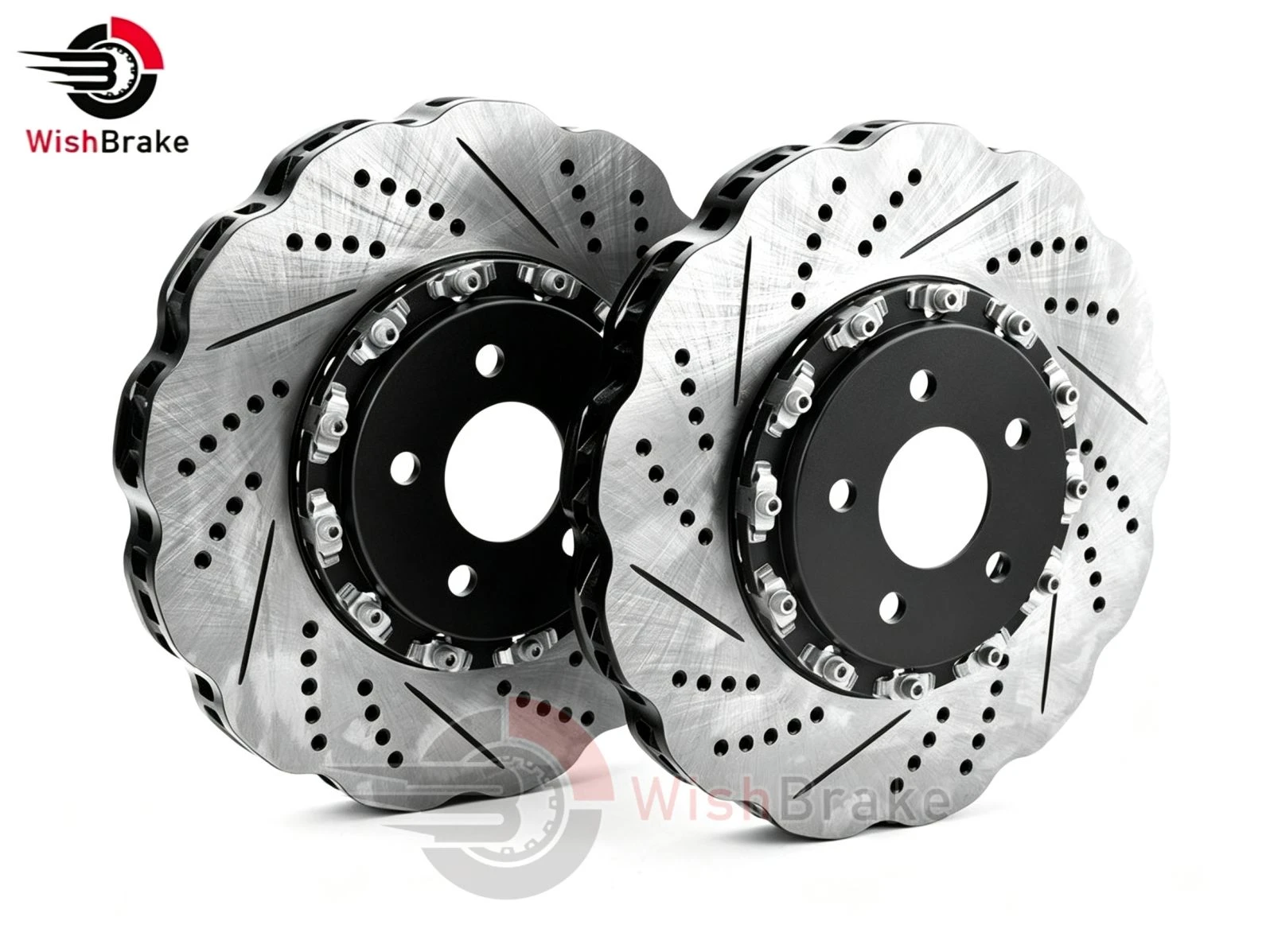

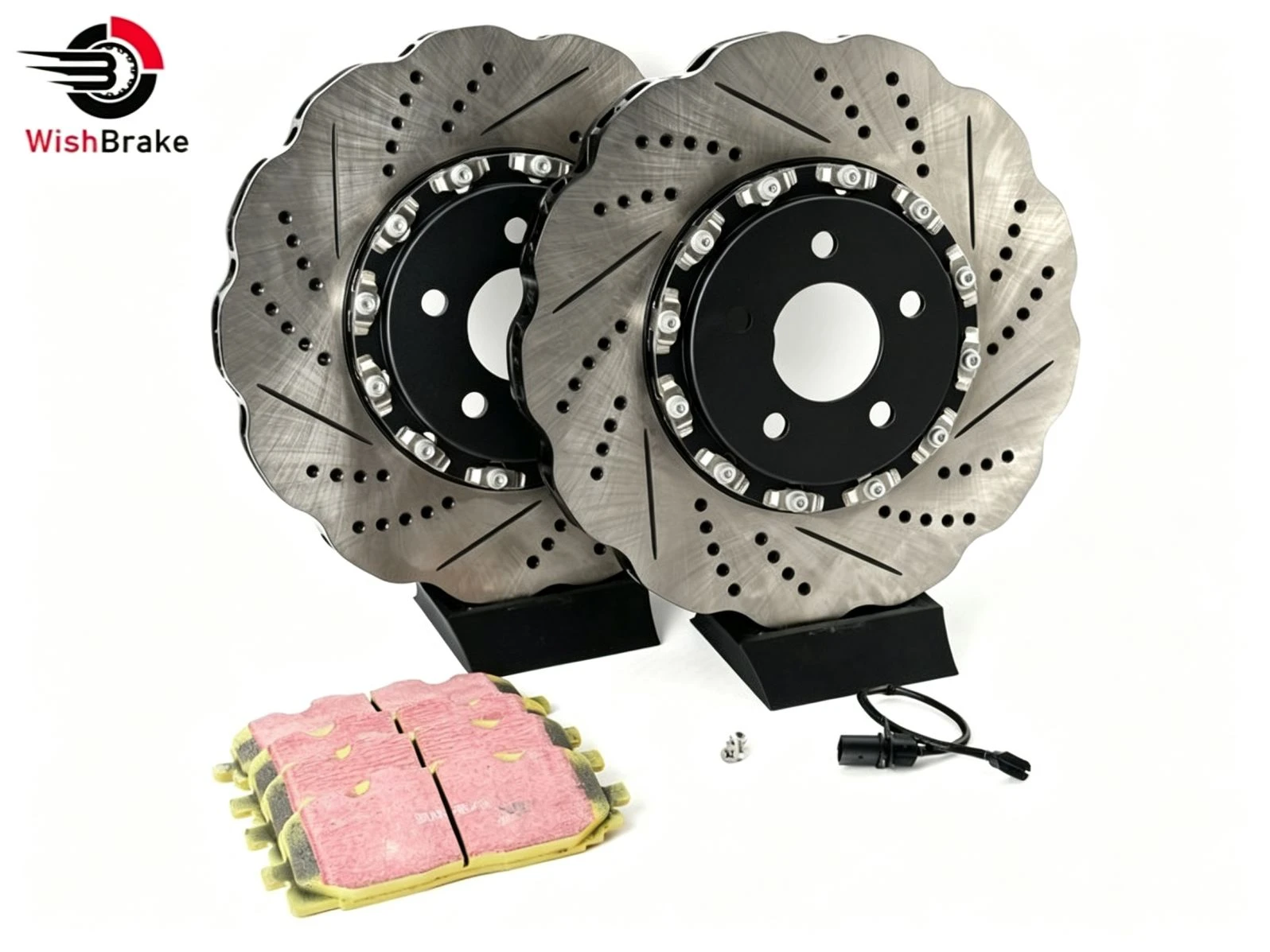

Front 2-Piece Scalloped Brake Rotors - Pair (365x34) |
|
Product Name |
Front 2-Piece Scalloped Brake Rotors - Pair |
|
Product Code |
420615301A/ 420615301B/ 420615301D/ 8T0615301/ 8T0615301K/ 8T0615108 |
|
OE Number Example |
420615301D |
|
Brand |
WISHBRAKE |
|
Disc Type |
Front Axle, Perforated / Vented |
|
Material |
G3000/ G3500/ GG15HC/ GG20HC |
|
Technical Specifications |
|
|
Outer Diameter |
365mm |
|
Disc Thickness |
34mm |
|
Minimum Thickness |
32.4mm |
|
Overall Height |
52.4mm |
|
Center Bore Diameter |
68mm |
|
Mounting Holes |
6/5 |
|
PCD / Bolt Pattern |
112mm |
|
Disc Type |
Front Axle, Perforated / Vented |
|
Material |
G3000/ G3500/ GG15HC/ GG20HC |
|
Weight |
11kg |
|
Vehicle Compatibility |
|
|
Make |
Audi; Lamborghini |
|
Model |
R8 Spyder (429), R8 Spyder (4S9), R8 Coupe (423), R8 Coupe (4S3), RS5 Cabriolet (8F7), RS5 Coupe (8T3), Gallardo, A5 Coupe, A5 Cabriolet (8F7), R8 Coupe, R8 (4S3, 4SP) |
|
Generation |
8F7, 4S3, 4SP |
|
Year |
2007-2017 |
|
Engine |
New |
|
Commercial Information |
|
|
MOQ |
2 Pcs |
|
Sample Availability |
Yes |
|

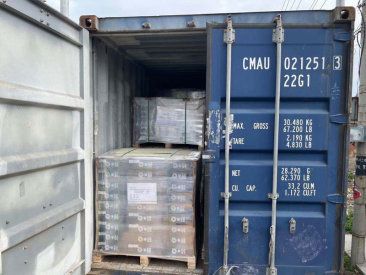

Packaging |
OEM Packaging |
|
Delivery Time |
7-15 Days |
|
Warranty |
80000kms |
|
OEM/ODM |
Yes, Support |

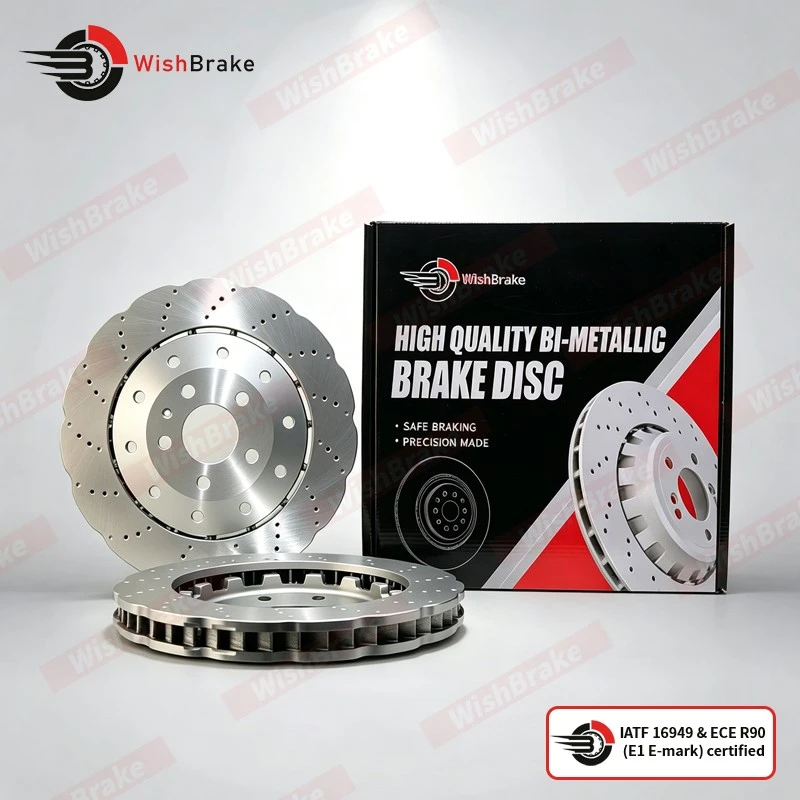

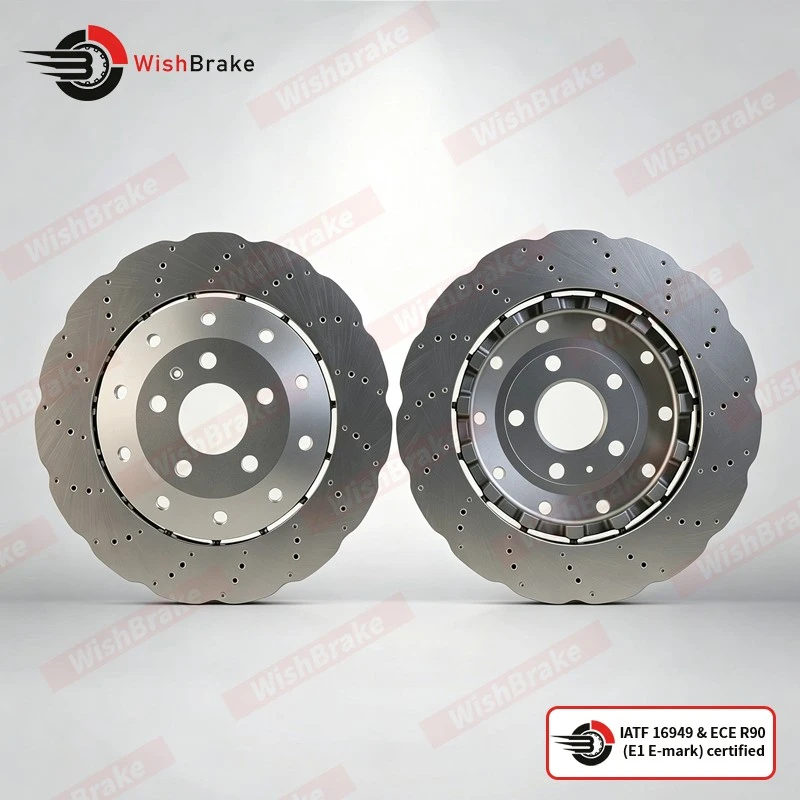

WishBrake Scalloped Brake Rotors also commonly referenced as scalloped edge discs / petal / wave outer profile rotors, sit under Brake Discs By Type category as a dedicated performance oriented rotor design, distinct from regular round edge vented discs, surface drilled discs or slotted-only discs.
Product feature and application
Feature:
Outer Edge Scallop Geometry: This is the defining trait for this Brake Discs By Type product line. Material removed from the largest radius delivers meaningful reduction on rotating mass, where weight saving gives biggest handling benefit. The curved notch profile also acts as small air scoops that disrupt stagnant hot air boundary layer.
Application Scope
Do the service for: BMW, Mercedes-Benz, Audi, Porsche, Lamborghini, Ferrari, Maserati, Bentley, Rolls Royce, Aston Martin, McLaren, Pagani, Jaguar, Land Rover, Tesla, Volvo, Mini, Alfa-Romeo, Bugatti performance fitment
Production details
WishBrake scalloped brake discs follow a dedicated production flow optimized for this modified edge type:
- High carbon cast iron blank incoming material spectral check, same as our standard brake disc lines
- Rough turn, vent machining if vented variant, stress relief thermal cycle critical for performance rotors
Product qualification
Because scalloped brake rotors sit in performance / modified product segment, buyers are often extra cautious about material integrity and safety documentation. WishBrake qualification package for this line
WishBrake service flow for scalloped brake disc B2B customers:
Pre-sales: OE cross check, confirm if target platform has compatible fitment, advise one-piece vs two-piece variant, surface pattern & coating choice. If customer only has vehicle list we map recommended part numbers.
FAQ
Q: Are scalloped brake rotors same thing as slotted brake rotors?
A: No, they modify different zones. Slotted cuts are on friction contact face for pad cleaning. WishBrake scalloped rotors modify outer perimeter edge for weight reduction, airflow and debris sweep. They can be combined together on same disc for compound benefit. They belong to different Brake Discs By Type categories on our website.
Q: Do scalloped rotors weigh much less?
A: Typically 5-12% on same diameter one piece rotor, more significant weight saving when combined with two piece aluminum hat construction. Biggest handling benefit on larger diameter performance front axles.

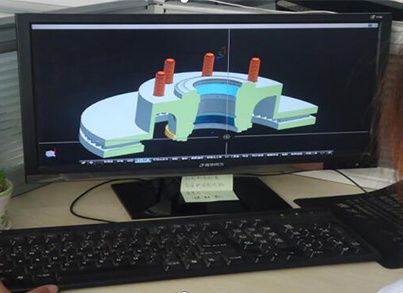

We recently updated internal CNC tool library for more consistent scallop profile repeatability across batch runs.
