Qingdao Wish Auto Parts Co., Ltd. is one of the leading manufacturers and suppliers of scalloped edge discs in China, featured by quality products and good price. If you're going to buy the newest scalloped edge discs made in China, welcome to get pricelist from our factory. Customized orders are welcome.
Specification
|
Product Overview |
|
|
Products Name |

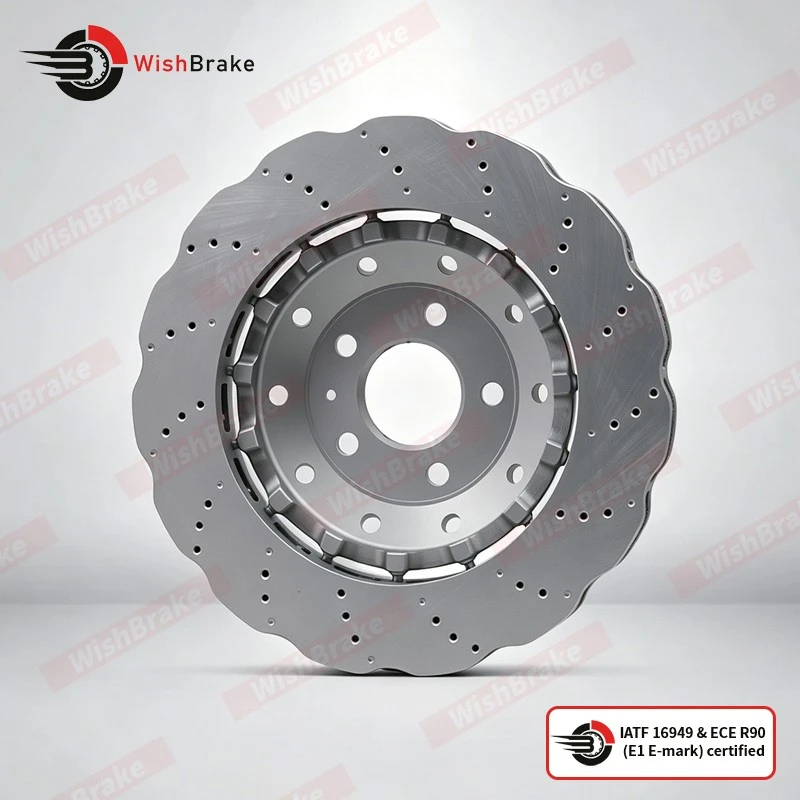

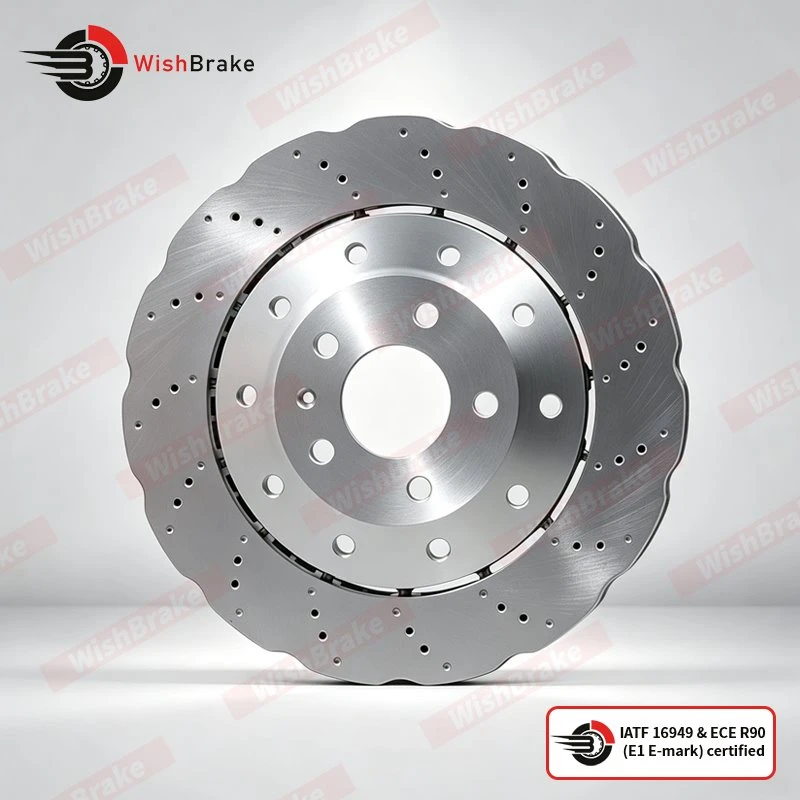

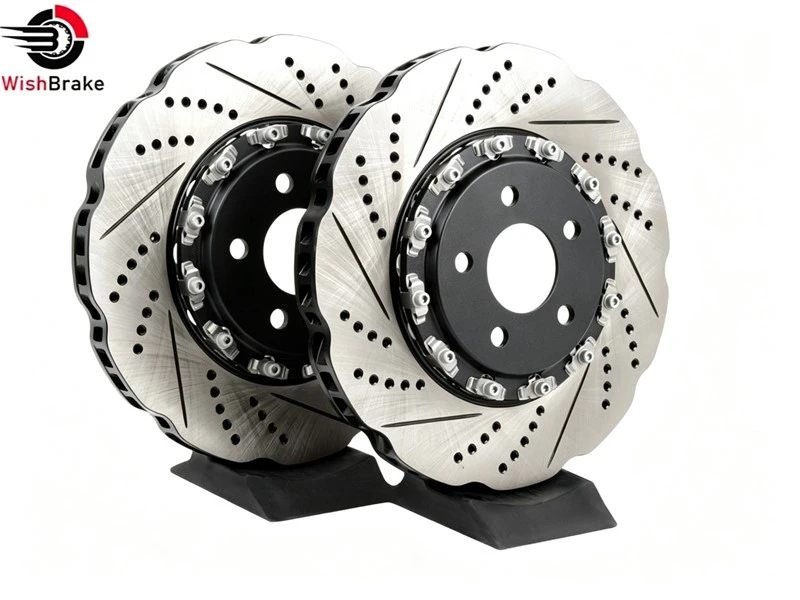

Front 2-Piece Tru-Float Scalloped Brake Rotors - Pair (345x30) |
|
Product Name |
Front 2-Piece Tru-Float Scalloped Brake Rotors - Pair |
|
Product Code |
8K0615301M/ 95B615301B/ 95B615301M/ 8K0615301K/ 4G0615301AF |
|
OE Number Example |
8K0698301M |
|
Brand |
WISHBRAKE |
|
Disc Type |
Front Axle, Vented |
|
Material |
G3000/ G3500/ GG15HC/ GG20HC |
|
Technical Specifications |
|
|
Outer Diameter |
345mm |
|
Disc Thickness |
30mm |
|
Minimum Thickness |
28.5mm |
|
Overall Height |
52mm |
|
Center Bore Diameter |
68mm |
|
Mounting Holes |
5 |
|
PCD / Bolt Pattern |
112mm |
|
Disc Type |
Front Axle, Vented |
|
Material |
G3000/ G3500/ GG15HC/ GG20HC |
|
Weight |
10.8kg |
|
Vehicle Compatibility |
|
|
Make |
Audi; Porsche |
|
Model |
A7, A4, A5, Allroad, S4, S5, A6, Q5, Macan |
|
Generation |
8K2, 8K5, 8F7, 8TA |
|
Year |
2007-2019 |
|
Engine |
New |
|
Commercial Information |
|
|
MOQ |
2 Pcs |
|
Sample Availability |
Yes |
|
Packaging |
OEM Packaging |
|
Delivery Time |
7-15 Days |
|
Warranty |
80000kms |
|
OEM/ ODM |
Yes, Support |
It is key that B2B distributors and workshops differentiate: scalloped modifications are made to outer edge profile and NOT on the friction contact area. The full friction ring is maintained for stable contact with brake pads, Pedal Feel and service life. This is important when compared to many full petal motorcycle-only rotors.

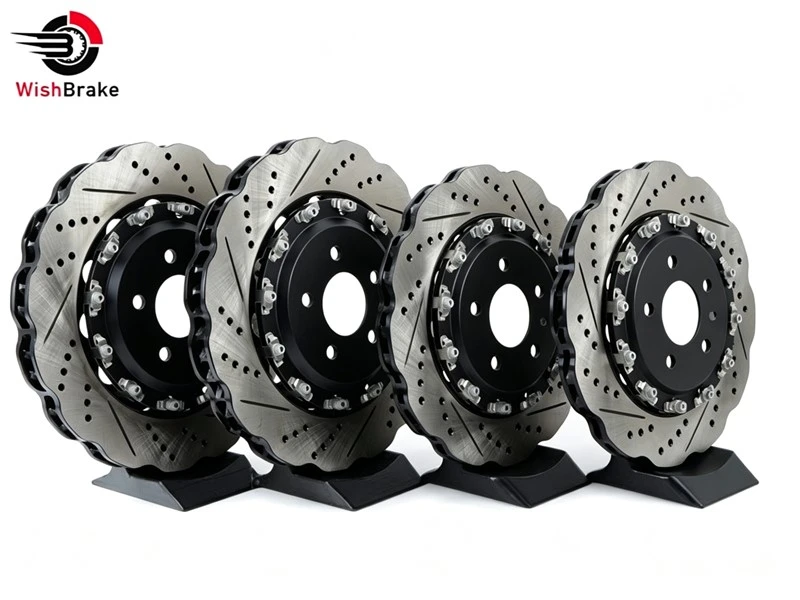

Our automotive range is designed for street-sport, track day, performance upgrade fitment and combines: solid scalloped; vented scalloped; drilled & scalloped; slotted & scalloped; two-piece floating scalloped; and GEOMET / zinc coated anti-corrosion variants.
Product feature and application
• Performance street upgrade replacement for compatible M / AMG / RS / Turbo / Quadrifoglio etc vehicle lines
• Track day preparation rotor, paired with medium / high friction performance pads

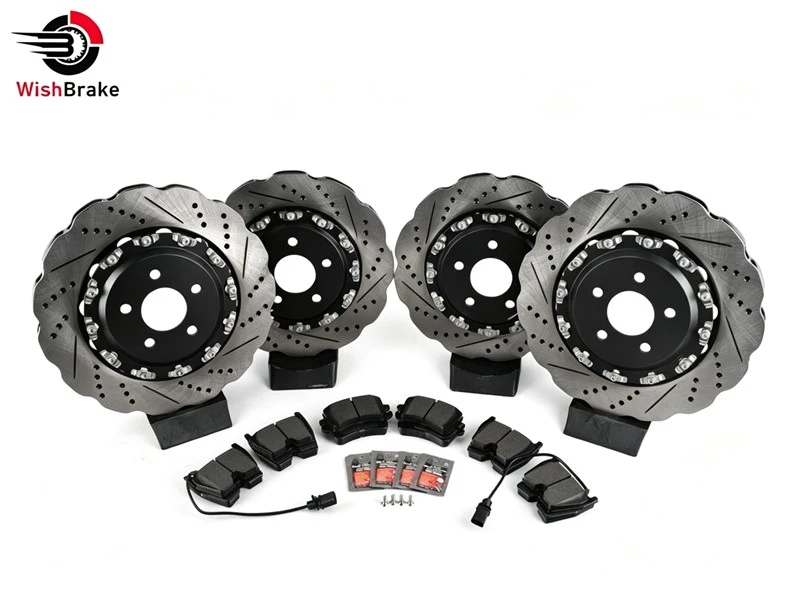

• Tuning workshop private label brake kit component

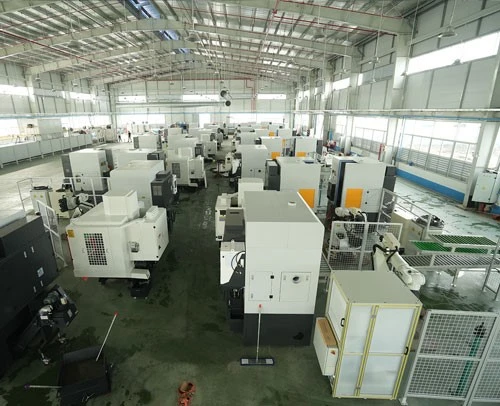

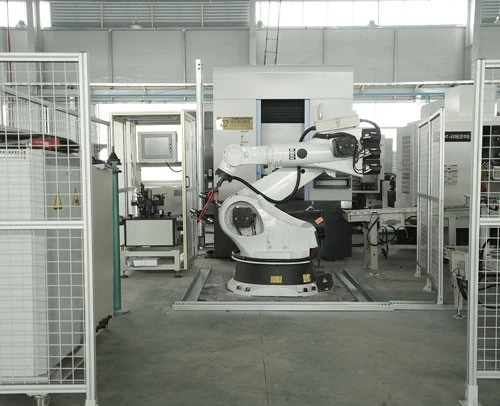

Production details
For this reason WishBrake treats scalloped profile as a performance product family with extra process gates, not a trivial cosmetic cut.
Product qualification
• Our engineering team can review custom scallop profile drawings before production, advise on notch depth vs strength tradeoff
• We can share reference fitment data for compatible vehicle platforms with B2B partners
We maintain expanding OE reference spreadsheet for this product category and send updates to regular wholesale partners.
FAQ
Q: Which vehicles do you make bimetallic scalloped rotors for?
A: We do the service for all the listed premium performance vehicle lines, mapped against original OE dimensions. Send us OE numbers or model year list and our team prepares fitment list.
We released new combined Geomet coated + scalloped + vented hybrid SKU, targeting distributors that want performance look plus long rust-free shelf life on ocean transit.
