Qingdao Wish Auto Parts Co., Ltd. is one of the leading manufacturers and suppliers of hybrid metal brake discs in China, featured by quality products and good price. If you're going to buy the newest hybrid metal brake discs made in China, welcome to get pricelist from our factory. Customized orders are welcome.
Specification
|
Product Overview |
|
|
Products Name |
hybrid metal brake discs |
|
Product Name |
alloy brake rotors |
|
Product Code |
LR114564 |
|
OE Number Example |
LR161919 |
|
Brand |
WISHBRAKE |
|
Disc Type |
alloy brake rotors |
|
Material |
G3000/ G3500/ GG15HC/ GG20HC |
|
Technical Specifications |
|
|
Outer Diameter |
325mm |
|
Disc Thickness |
20mm |
|
Minimum Thickness |
18mm |
|
Overall Height |
42mm |
|
Center Bore Diameter |
64mm |
|
Mounting Holes |
5 |
|
PCD / Bolt Pattern |
- |
|
Disc Type |
Internally Vented |
|
Material |
G3000/ G3500/ GG15HC/ GG20HC |
|
Weight |
- |
|
Vehicle Compatibility |
|
|
Make |
Chery Jaguar Land Rover / Discovery Sport (L550) 2019- / Range Rover Evoque (L551) 2019- / Land Rover |
|
Model |
Discovery Sport |
|
Generation |
L550 |
|
Year |
2015-2017 |
|
Engine |
New |
|
Commercial Information |
|
|
MOQ |
2 Pcs |
|
Sample Availability |
Yes |
|
Packaging |
OEM Packaging |
|
Delivery Time |
7-15 Days |
|
Warranty |
80000kms |
|
OEM/ODM |
Yes, Support |

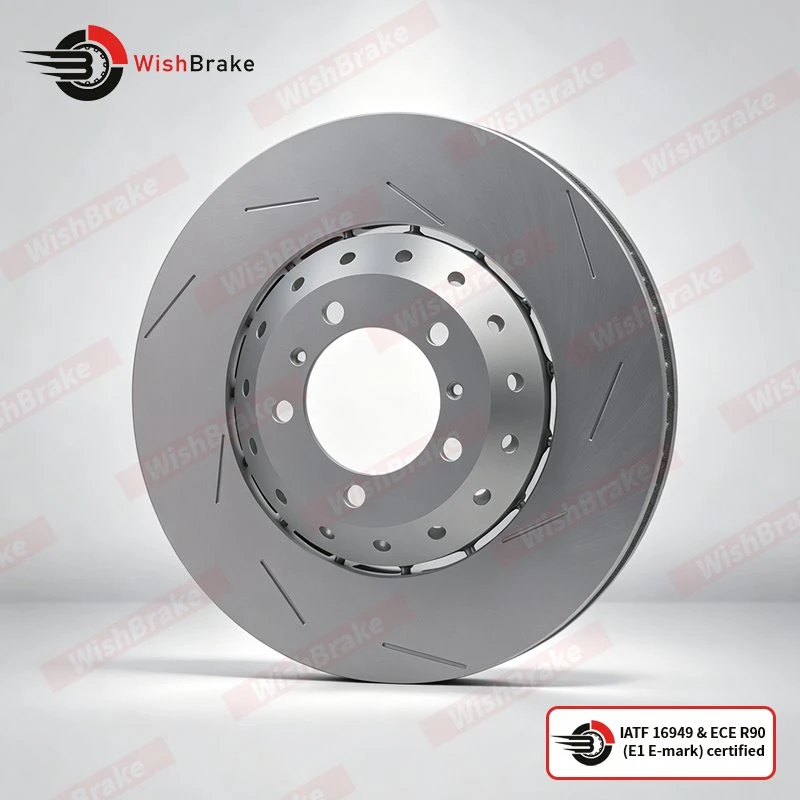

Our aftermarket bimetallic brake disks are designed to meet OE dimension specifications. These are OEM equal parts which require no additional vehicle modification. Surface anti corrosion choices include Geomet coating, zinc plating and UV painting to withstand salt spray corrosion environment on coastal and winter road salt.
Lower Unsprung Mass Thanks to the Aluminum Alloy hat, aluminum alloy rotor weight was also greatly reduced in proportion to a one piece cast rotor, for better steering response and vehicle handling.
Street legal upgrade of performance on sports cars & supercars
Upgrade of heavy load Braking systems for high performance electric vehicles
The special process for aluminum rotor hat is forging rather than simple casting to ensure the mechanical strength of rotor hat at high rotation speed.
We use the spectral analyzer to test the chemical composition of cast iron and aluminum alloy in order to confirm the material formula.
The casting workshop
CNC lines
The dynamic balance testing
The spectral analysis laboratory
Shipping term: EXW, FOB, CFR, CIF, DAP trade terms. Main export ports Qingdao, Shanghai, Ningbo.
FAQ
Q: Please advise what anti corrosion surface coating options are available for bimetallic brake discs?
A: We produce Geomet coating, zinc plated, UV painted anti rust treatment on hat and non friction surface. Friction ring surface exposed raw cast iron to ensure stable brake friction performance.
Our factory finished upgrading of automatic dynamic balance inspection line further improved production stability for high performance bimetallic brake disc batch.
